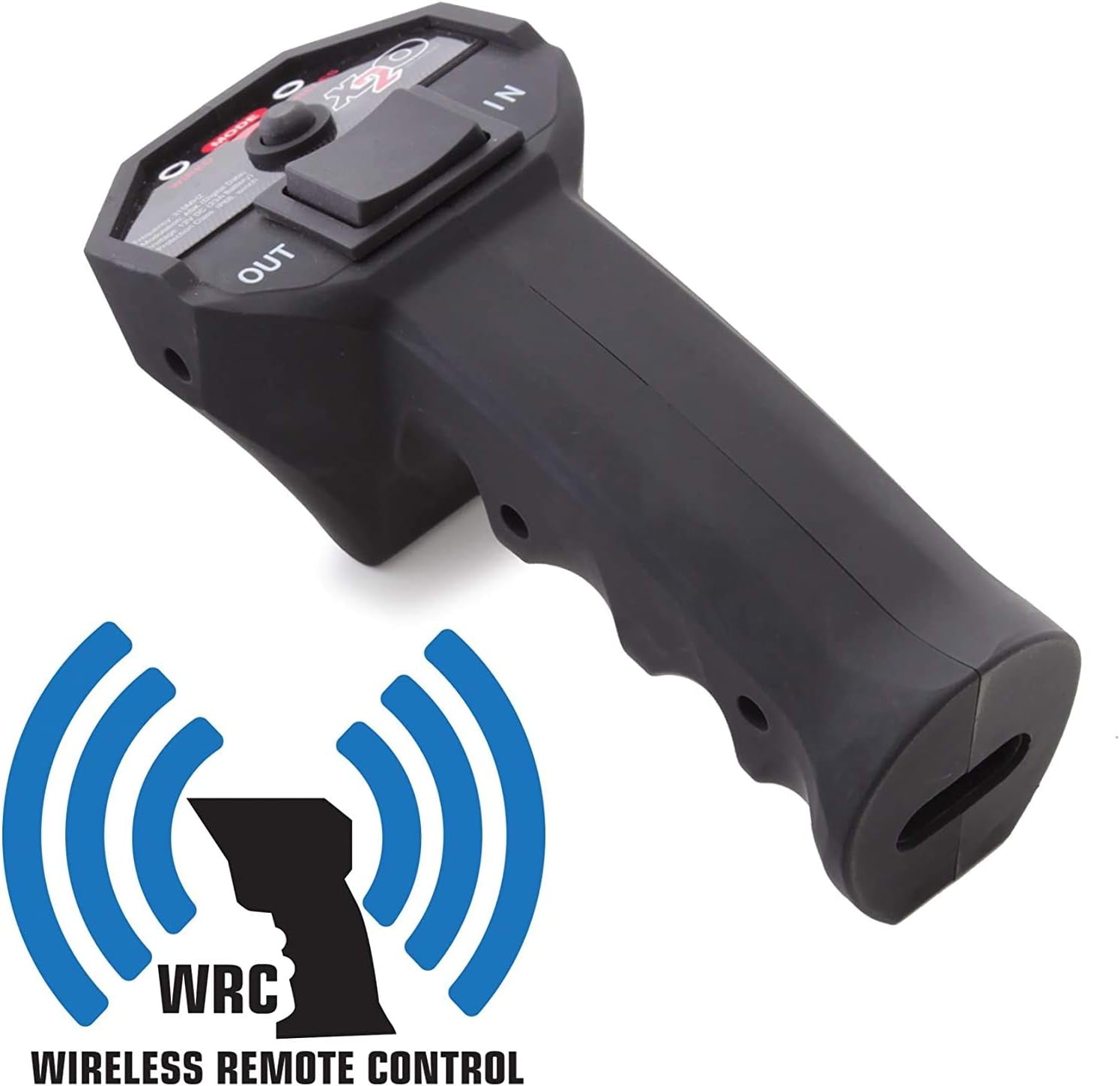

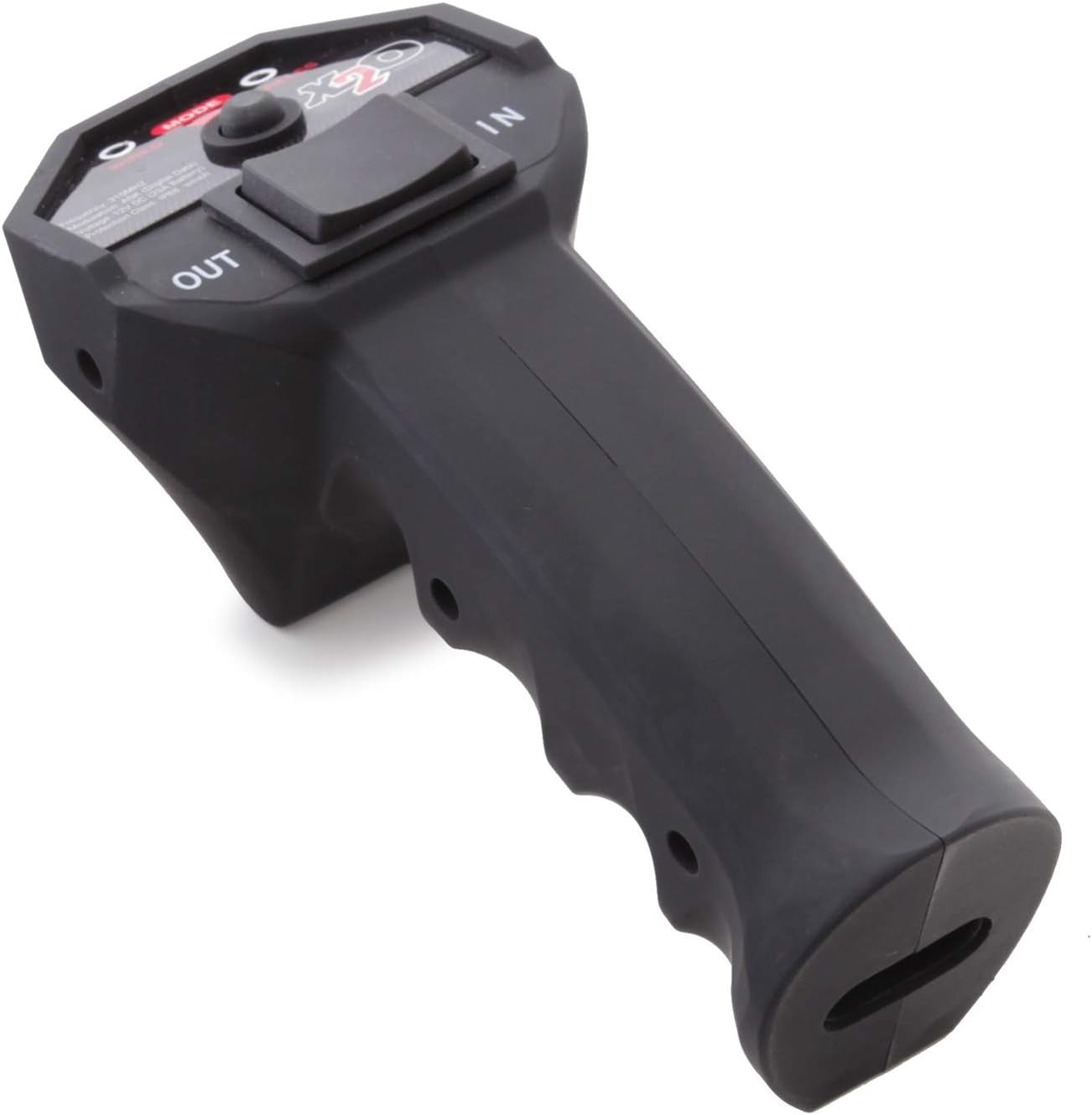

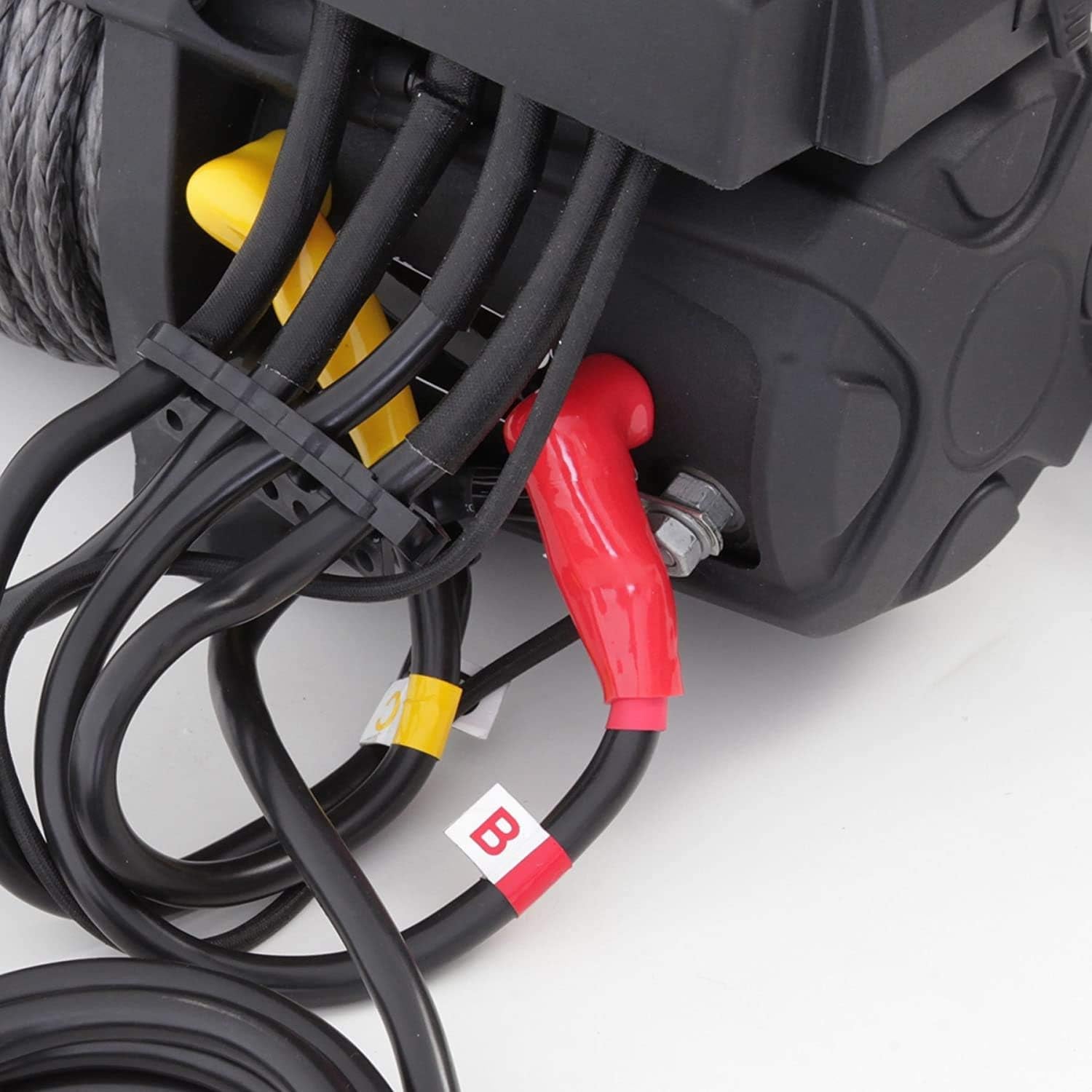

Your purchase includes: Smittybilt X20 Steel Cable Winch, 4-way roller fairlead with forged hook, all required power cables to hook up to your vehicle, rope sleeve and wireless remote
Lifetime Mechanical Warranty, 5 Year Electrical Warranty
Overall Dimensions: 22.3"L x 5.4"W x 9.4" H. Mounting Bolt Pattern: 10” x 4.5”. Net weight: 94lbs.

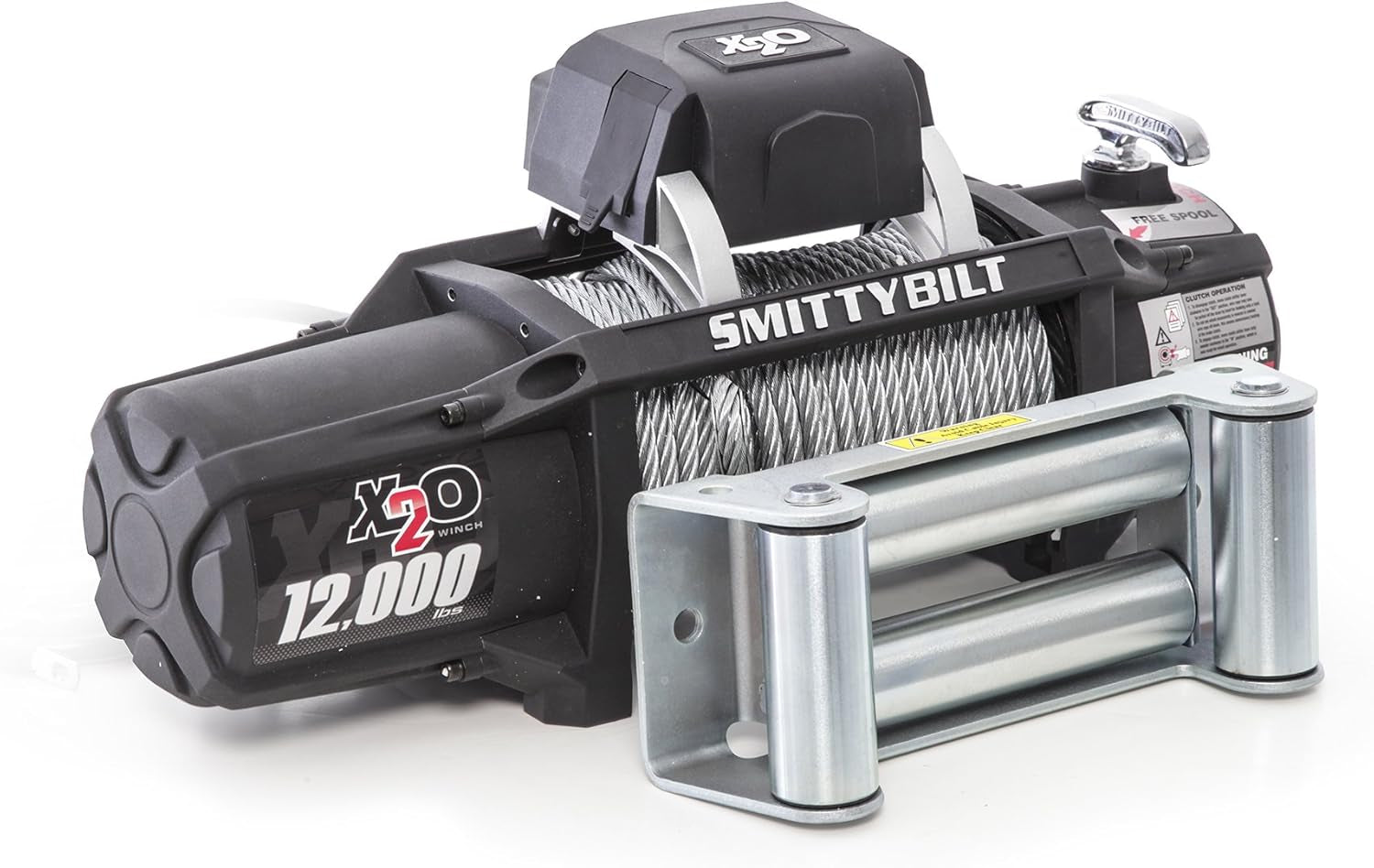

Smittybilt 97512 winch has an IP68 waterproof rating, rated line pull of 12,000 pounds (5,454 kilograms) in a single line. Motor of 6.6hp series wound, the remote switch reaches 12 feet (3.7m) lead. The gear train is of revolutionary 3-stage planetary. Gear ratio is of 265:1, clutch: sliding ring gear, brake: automatic out-of-drum. Drum size: Diameter 2.5 inch, cable: 98.5 feet 3/8 inch diameter, cable type: braided steel wire rope, fairlead: 4-way roller. Recommended battery: 650CCA minimum for winching, battery leads: 25 square millimeter, 72 inch (1.83m). Finish: textured black. Net Weight: 94 pounds (42.6 kilograms); mounting bolt pattern: 10.0 inch x 4.50 inch, overall dimensions: 22.3"L x 5.4" W x 9.4"H.
